QingDao DeerMa Plastic Machinery Co., Ltd.
|
PC Hollow corrugated sheet extrusion line/sheet making line
| Payment Terms: | T/T,L/C |
| Special Groups: |
corrugated sheet extrusion line (2)
|
| Place of Origin: | Shandong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail

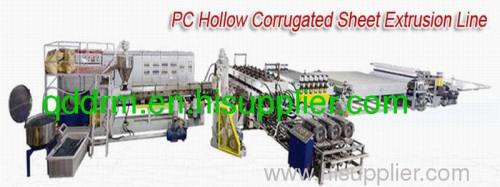

PC Hollow corrugated sheet extrusion line consists of extruder,cooling water tank,haul off machine,cutting machine,stacker,etc.
PC hollow corrugated sheet extrusion line:
we have successfully supplied more than 80 PP hollow corrugated sheet lines and 100 set of PC hollow corrugated dies to our customers all over the China or also exporting to other countries. We created a fully new concept for forming plates of the calibrator, which can greatly increase production speed and make the sheet surface much smooth. Also the running of the line equipment has been keeping very stable and high percentage of recycled material could be reused.
we have successfully supplied more than 80 PP hollow corrugated sheet lines and 100 set of PC hollow corrugated dies to our customers all over the China or also exporting to other countries. We created a fully new concept for forming plates of the calibrator, which can greatly increase production speed and make the sheet surface much smooth. Also the running of the line equipment has been keeping very stable and high percentage of recycled material could be reused.
Technical Specification of PC Hollow corrugated sheet extrusion line
| Main extruder screw diameter | 120mm |
| L/D | 35:1 |
| Motor power of main extruder | 185kw |
| Co-extruder screw diameter | 45mm |
| L/D | 30:1 |
| Motor power of co-extruder | 15kw |
| sheet thickness range | 4-30mm |
| sheet width | 2100mm |
| output | >300kg/h |
| actual power consumed | 200kw |
