PE single wall corrugated pipe/ corrugated pipe production from China manufacturer - QingDao DeerMa Plastic Machinery Co., Ltd.

PE single wall corrugated pipe/ corrugated pipe production

Price:	10000.0~20000.0 USD
Payment Terms:	T/T,L/C
Special Groups:	corrugated pipe extrusion line (4)
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SWP

Production Capacity: as client's requirement

Delivery Date: 30-50 working days

Shaft Design: Single

Power: 11-55KW

Means of Transport: Ocean

Packing: wooden cases

Plastic Type: PP/PE

Brand Name: Deerma

Capacity: 30-200Kg/h

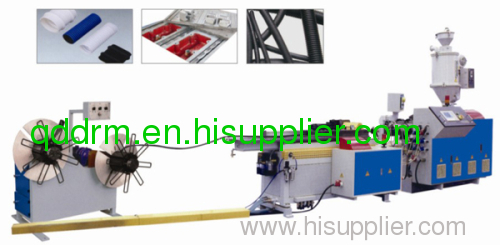

PE single wall corrugated pipe production line consists extruder,pipe die,calibration water tank,cooling water tank,haul off machine,cutting machine.

PE single wall corrugated pipe production line description:
QingDao Deerma Plastic Machinery Co., Ltd is high-tech plastic machinery enterprise specializing in producing integrated plastic equipment and different plastic pipelines and matrix with combination of scientific research, development, manufacture and service.The PE single wall corrugated pipe production line shall be used to produce small diameter single wall corrugation pipe in PVC,PP and PE raw material.
Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die;
Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct;

PE single wall corrugated pipe production line

Production pipe range:(mm)	4-10	10-16	16-40
Output(kg/h)	8	20	60
Main machine	SJ-30/30B	SJ-45/30B	SJ-65/30B
Die block(couple)	40	42	42
Production speed(m/min)	5-10	5-15	5-10
